Hoyt Atlas V-Bar

Hoyt Atlas Single Adjustable side Bar

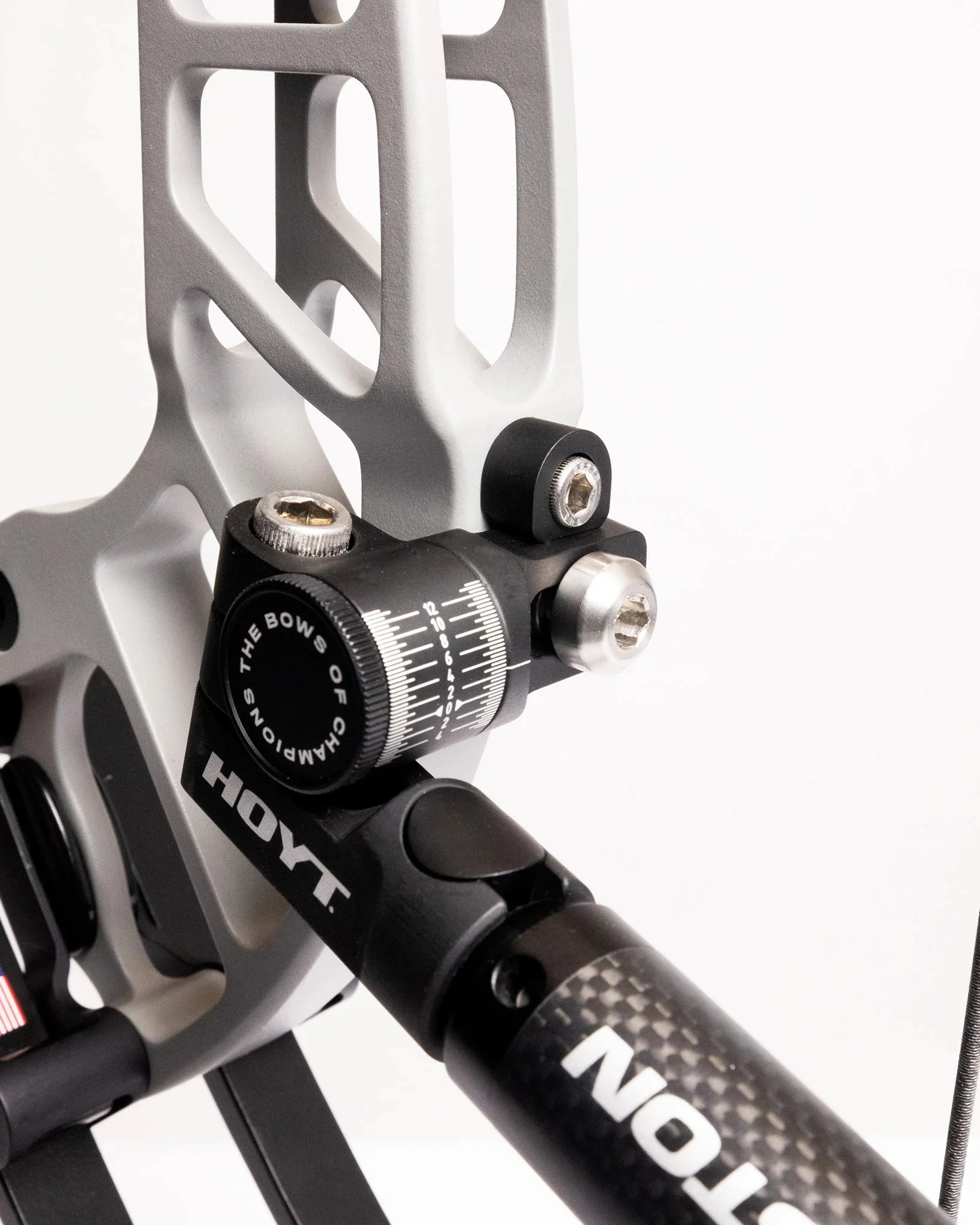

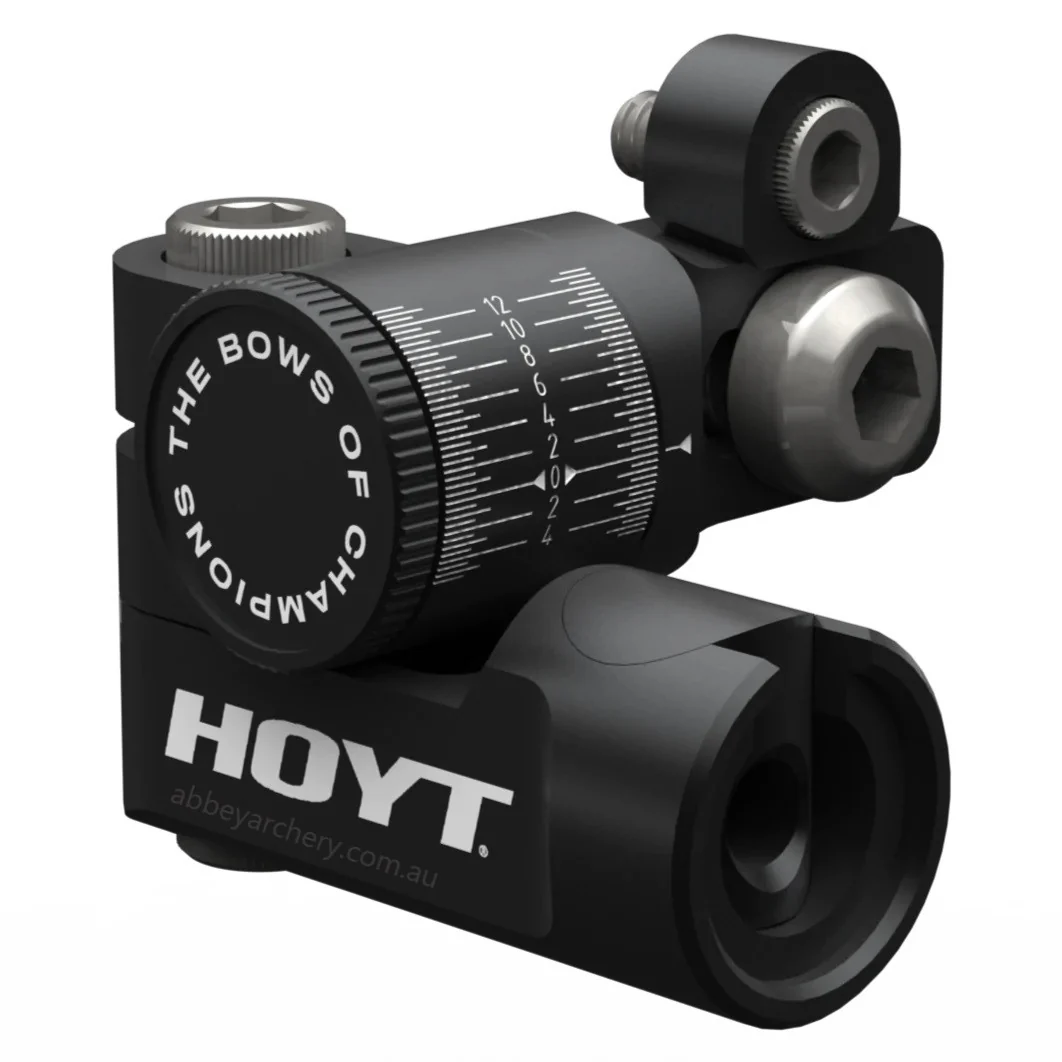

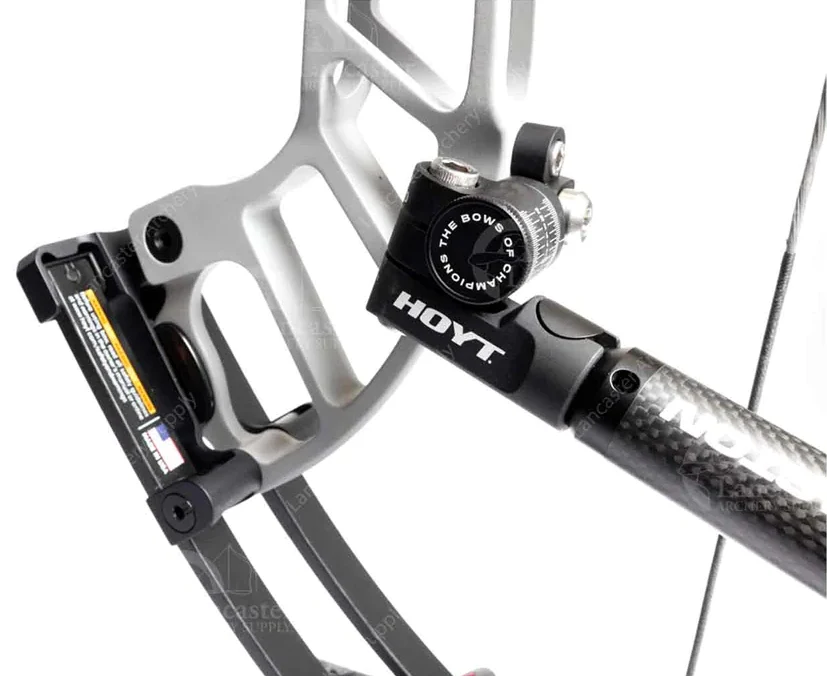

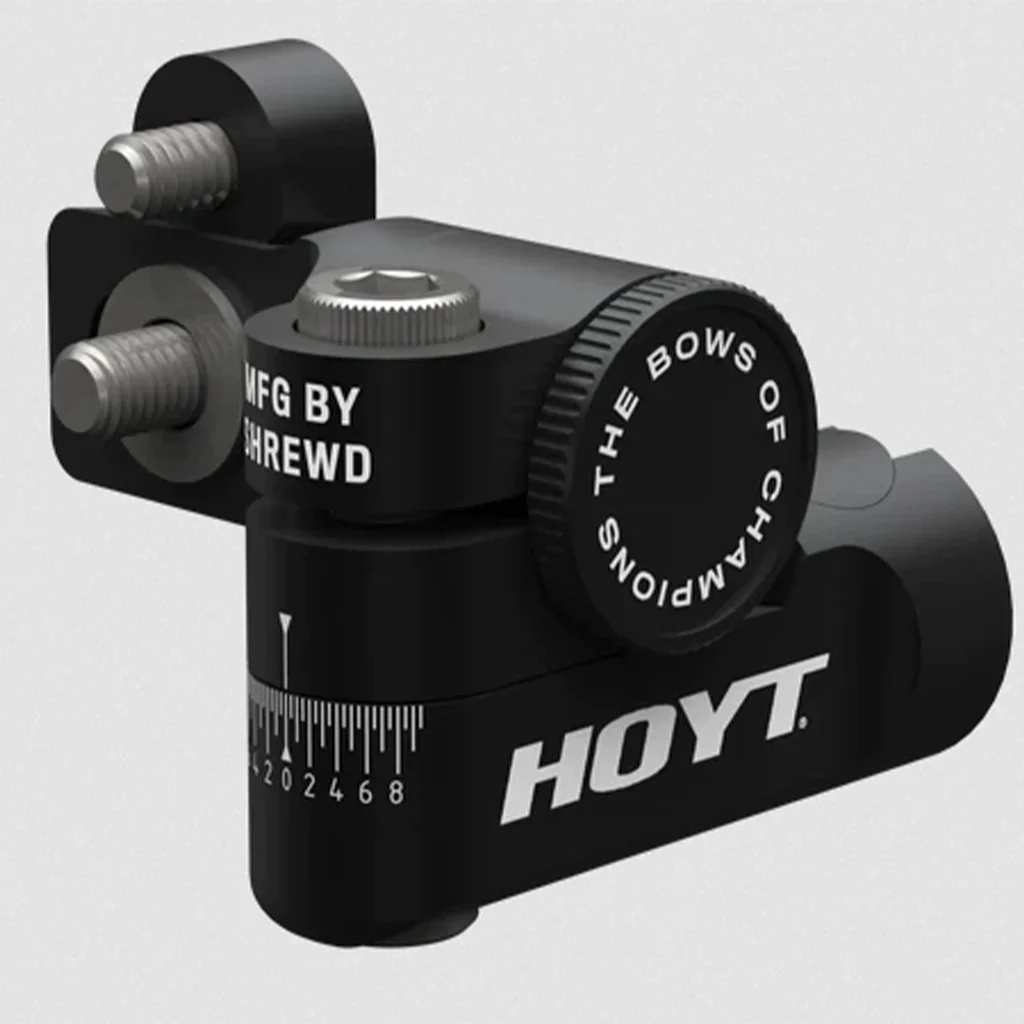

Designed specifically for Hoyt's unique, two-hole mounting system to ensure a rigid and secure connection, the Hoyt Atlas features a top mounting bar with 8° tapered edges and a mating wedge piece with a matching 8° angle. With the top bar mounted to the riser using the 5/16"-24 hole, the wedge is secured to the riser using the 1/4"-20 hole found above or below the top bar, and when tightened, the two pieces lock together.

Features:

• A hybrid clamp-taper system produces an ultra-strong V-bar
  Integrated quick disconnect (1" diameter) makes installing and removing a rear stabilizer effortless
• Features a precision, laser engraved indicator lines for repeatability and peace of mind
• Construction: Stainless Steel and Aluminum
• Features a unique top bar and wedge that lock against one another and prevent the V-bar from dropping
• Incorporates Shrewd's anti-walkout washer system to prevent any stabilizer walkout in the integrated quick disconnect
• An independently adjustable horizontal and vertical axis
• Coated with a durable anodized finish to seal and protect all machined aluminum components
• Constructed using all stainless-steel hardware with a 1/4" hex key socket for durability
• Reconfigurable to mount on the front or back of the riser for both left and right-handed shooters
  Works in conjunction with Shrewd's quick disconnect (sold separately) for adding a front stabilizer if mounting the Atlas to the target side of the riser
• Weight: 3.8 oz
• Dexterity: RH and LH

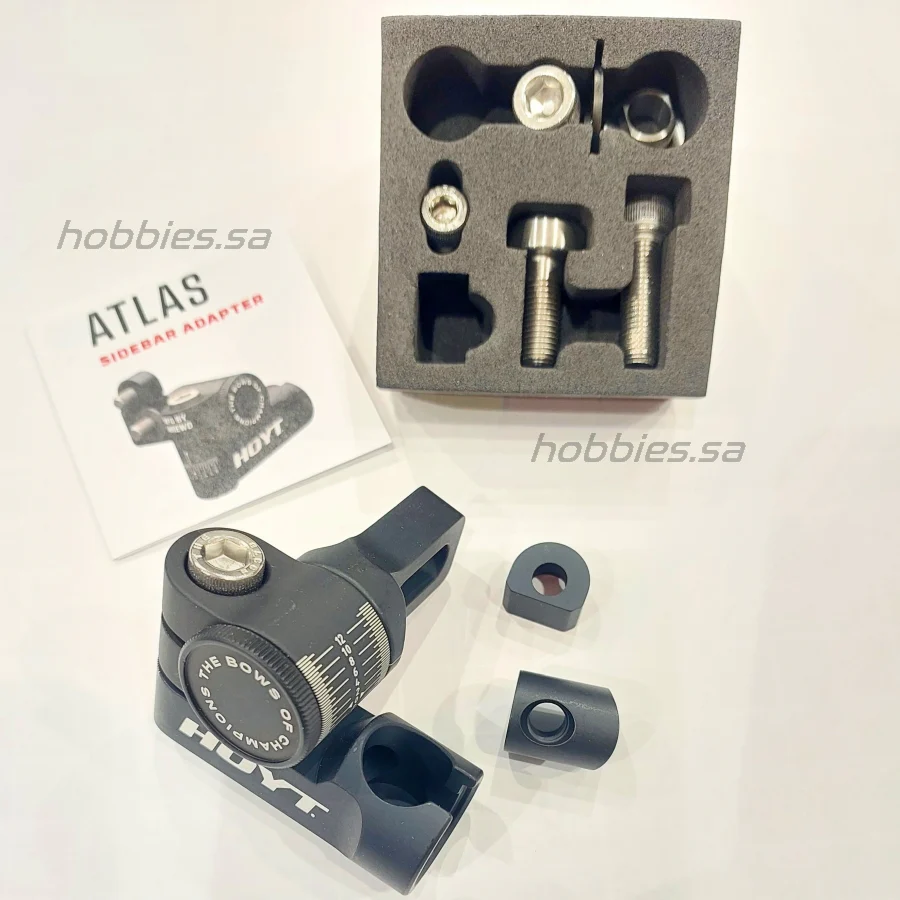

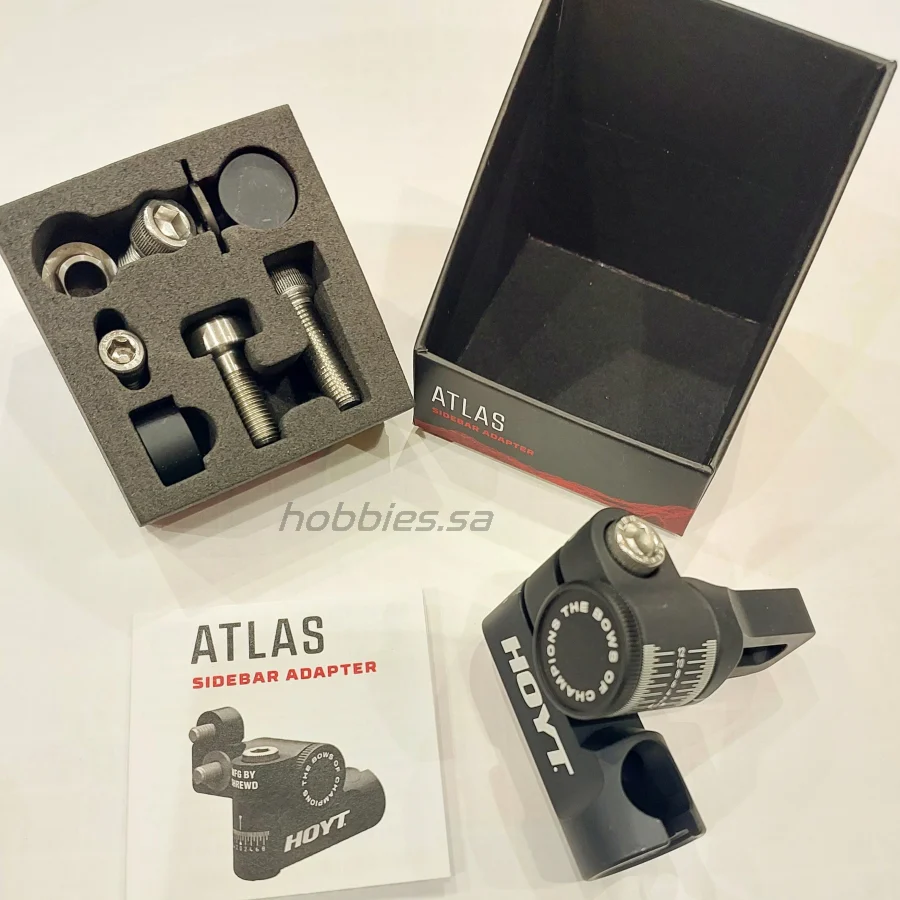

Includes:

• Atlas single V-bar
• Flush mounting barrel nut
• Wedge lock
• Custom 5/16"-24 x 0.8" bolt
• 5/16"-24 x 1" SHCS
• 5/16"-24 x 0.5" SHCS
• 1/4"-20 x 1/2" SHCS
• Stainless steel bushing
• Self-retaining washer
• Instructions

Wedge lock compatibility: Prevail / Invicta / Stratos / Altus HBT
The Hoyt sidebar adapter is compatible with all other Hoyt bows if the wedge lock is not used.

Made in the USA
